Premium-grade UNIFLEXSIL PTFE Lined Platinum Cured Silicone Hose with SS304 Braiding is specially engineered for highly demanding fluid transfer applications requiring exceptional chemical resistance, product purity, pressure handling capability, and operational reliability. Designed for pharmaceutical, biotechnology, chemical, food processing, and high-purity industrial environments.

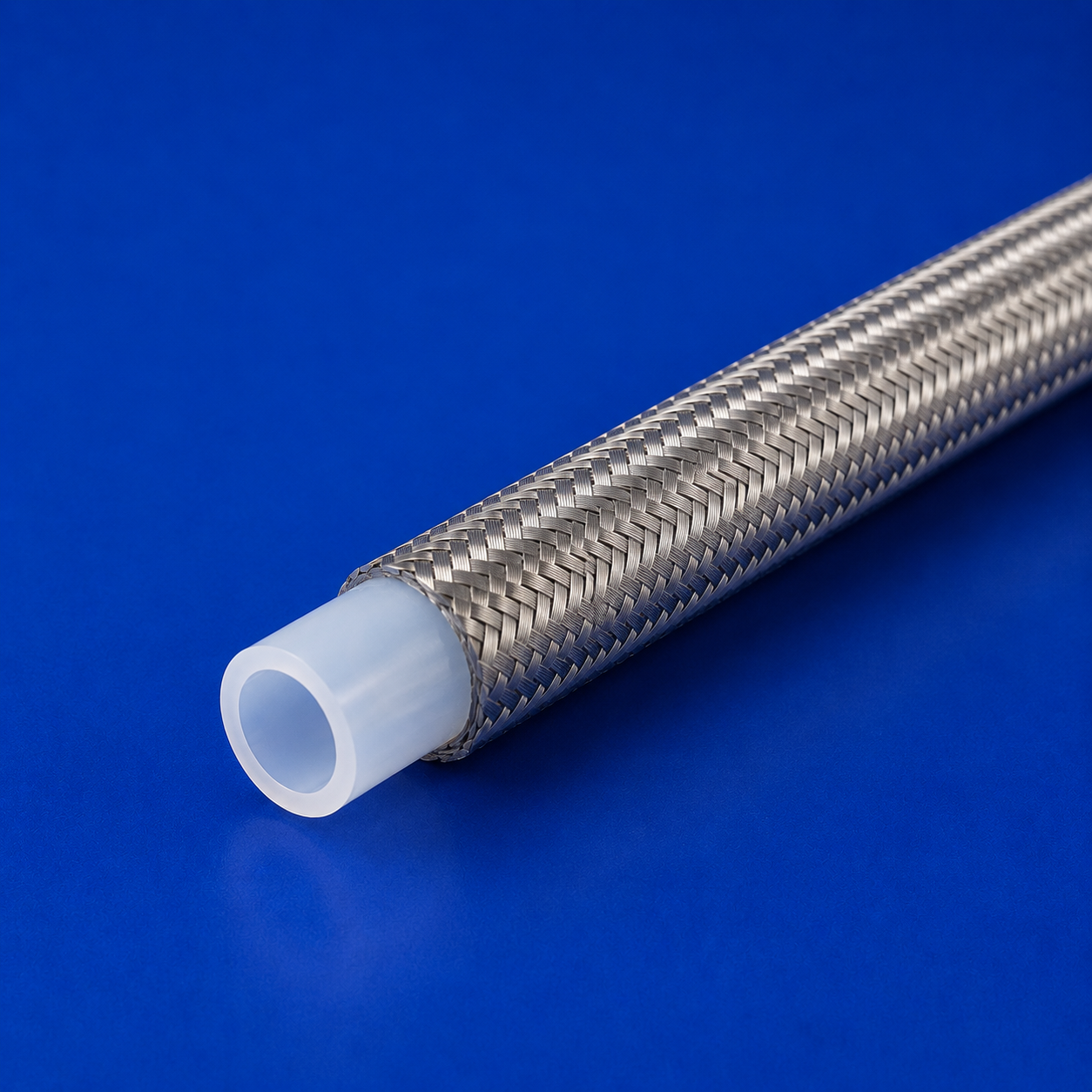

UNIFLEXSIL PTFE Lined Platinum Cured Silicone Hose combines the excellent flexibility of platinum cured silicone with the outstanding chemical resistance of PTFE and the superior strength of SS304 wire braiding.
The smooth PTFE inner liner provides exceptional resistance to aggressive chemicals, solvents, acids, alkalis, and high-purity process fluids, while the platinum cured silicone outer layer offers flexibility, durability, and thermal stability. The SS304 braided reinforcement enhances pressure handling capability and ensures structural integrity under demanding operating conditions.
This advanced hose construction makes it ideal for applications where chemical compatibility, contamination-free transfer, and reliable pressure performance are critical.
UNIFLEXSIL PTFE Lined Platinum Cured Silicone Hose with SS304 Braiding is widely used in:
Property | Specification |
Inner Layer | Virgin PTFE |
Outer Layer | Platinum Cured Silicone |
Reinforcement | SS304 Wire Braiding |
Temperature Range | -60°C to +200°C |
Surface Finish | Smooth Bore |
Flexibility | High |
Pressure Resistance | Excellent |
Chemical Resistance | Excellent |
Sterilization Compatibility | CIP / SIP Compatible |
Customized hose assemblies can be supplied with:
Suitable for transferring aggressive chemicals, solvents, acids, alkalis, and sensitive pharmaceutical products.
The PTFE contact surface minimizes product interaction and contamination risk.
SS304 braided reinforcement provides excellent strength for pressure and vacuum applications.
Combines the flexibility of silicone with the performance of PTFE for easy routing and installation.
Designed to withstand demanding industrial environments while maintaining consistent performance.
At Surya Prakash Engineering & Services, we manufacture and supply advanced fluid transfer solutions that meet the stringent requirements of critical process industries.
Our UNIFLEXSIL® hose solutions offer:
Our Hydraulic Hose Fittings are available in multiple sizes suitable for different industrial hydraulic systems and transfer applications.
Inner Diameter (ID) | Outer Diameter (OD) | Length |
25 mm | 40 mm | 100 mm |
38 mm | 55 mm | 150 mm |
50 mm | 70 mm | 200 mm |
63 mm | 85 mm | 250 mm |
75 mm | 100 mm | 300 mm |
100 mm | 130 mm | 350 mm |
125 mm | 160 mm | 400 mm |
150 mm | 190 mm | 450 mm |
